Product Information
Description
Model: OS60NDB1

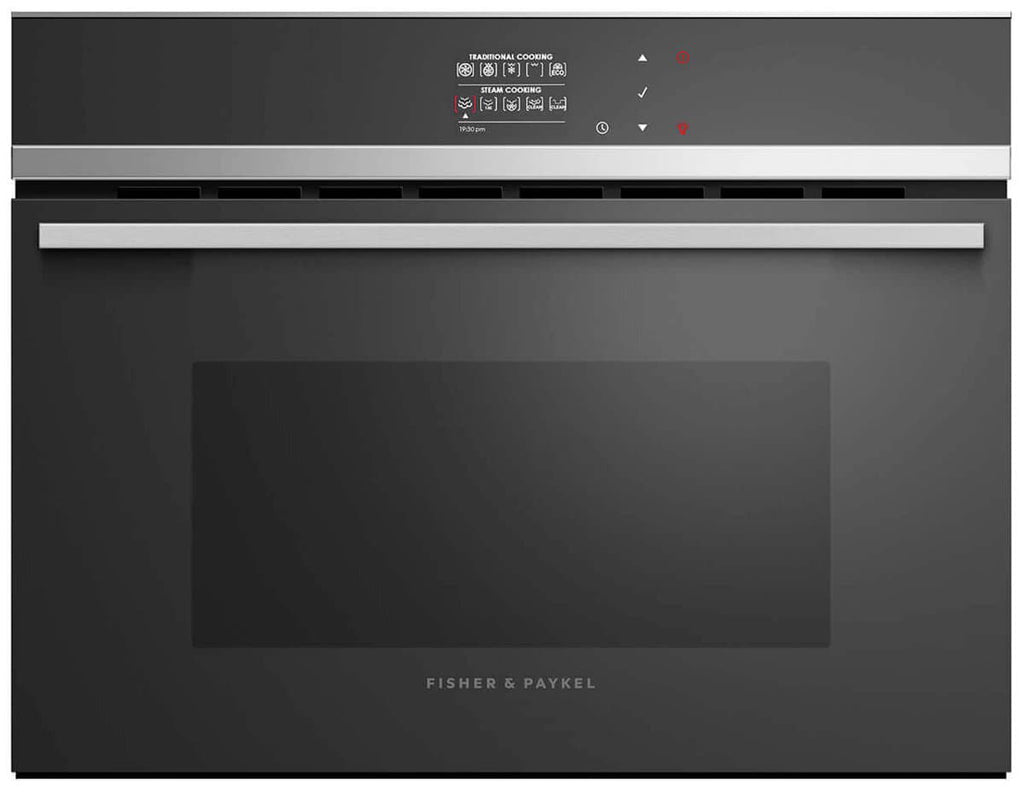

The Fisher & Paykel OS60NDB1 is a 60cm Series 9 Contemporary compact combi-steam oven with a 36L total capacity. It combines steam and conventional oven functions in a compact built-in format, giving you flexible options for cooking with moisture, fan-forced heat and grilling.
Nine cooking functions include dedicated steam modes as well as Fan Forced, Fan Grill, Grill, Ring + Grill and Steam + Ring. Steam cooking helps food retain moisture, flavour and nutrients, while the wired temperature sensor supports more controlled cooking results.

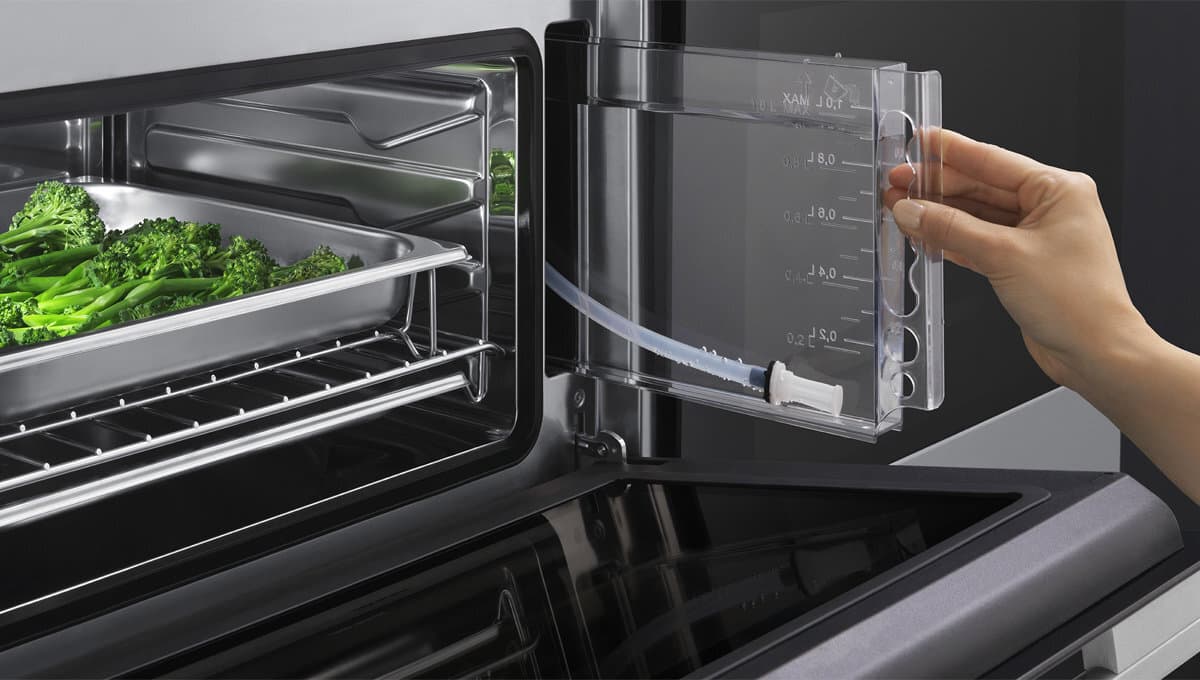

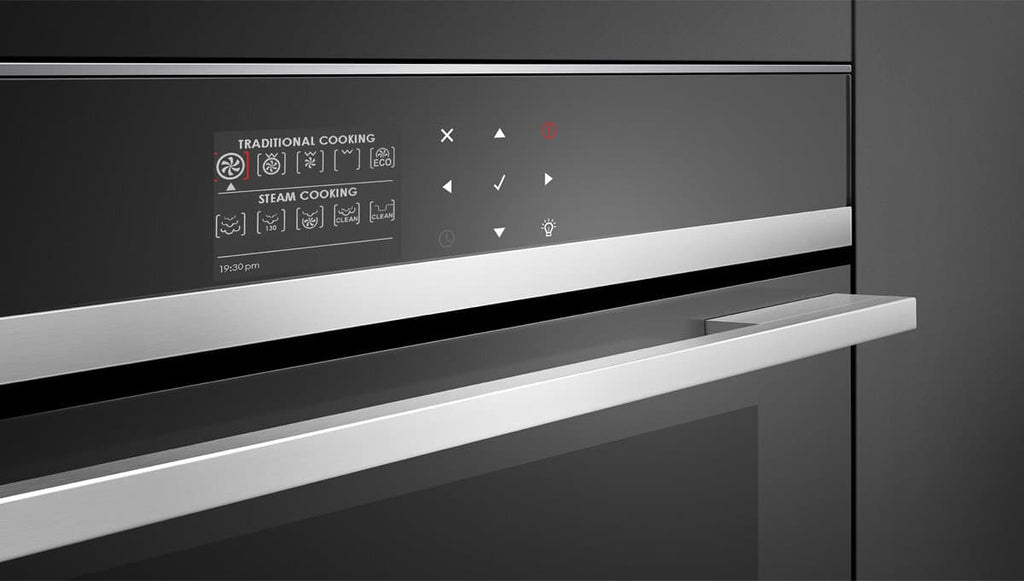

The intuitive touchscreen provides guided cooking by food type and recipes, automatic pre-set temperatures, timers, delay start and temperature information. A removable water tank means the oven requires no plumbing, making installation straightforward with a standard 15A electrical connection.

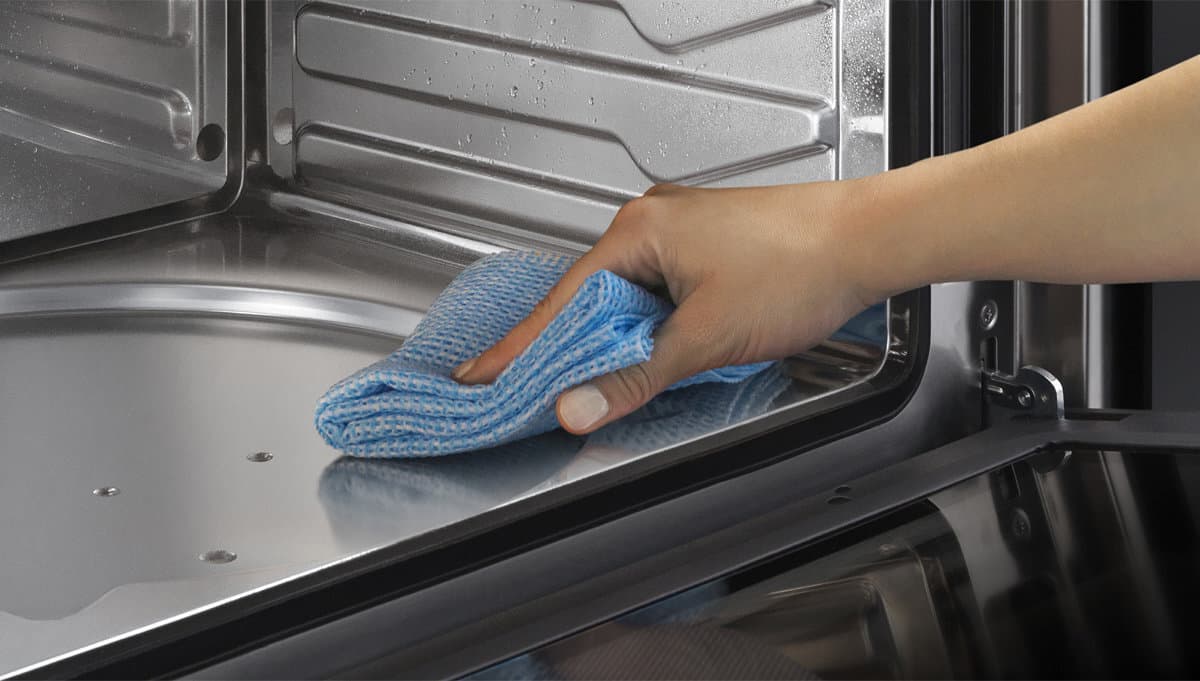

Cleaning is simplified by the smooth stainless steel interior and Steam Clean function. The compact oven measures 596mm wide, 458mm high and 562mm deep and includes a baking pan, perforated large dish, wire shelf and wired temperature sensor.

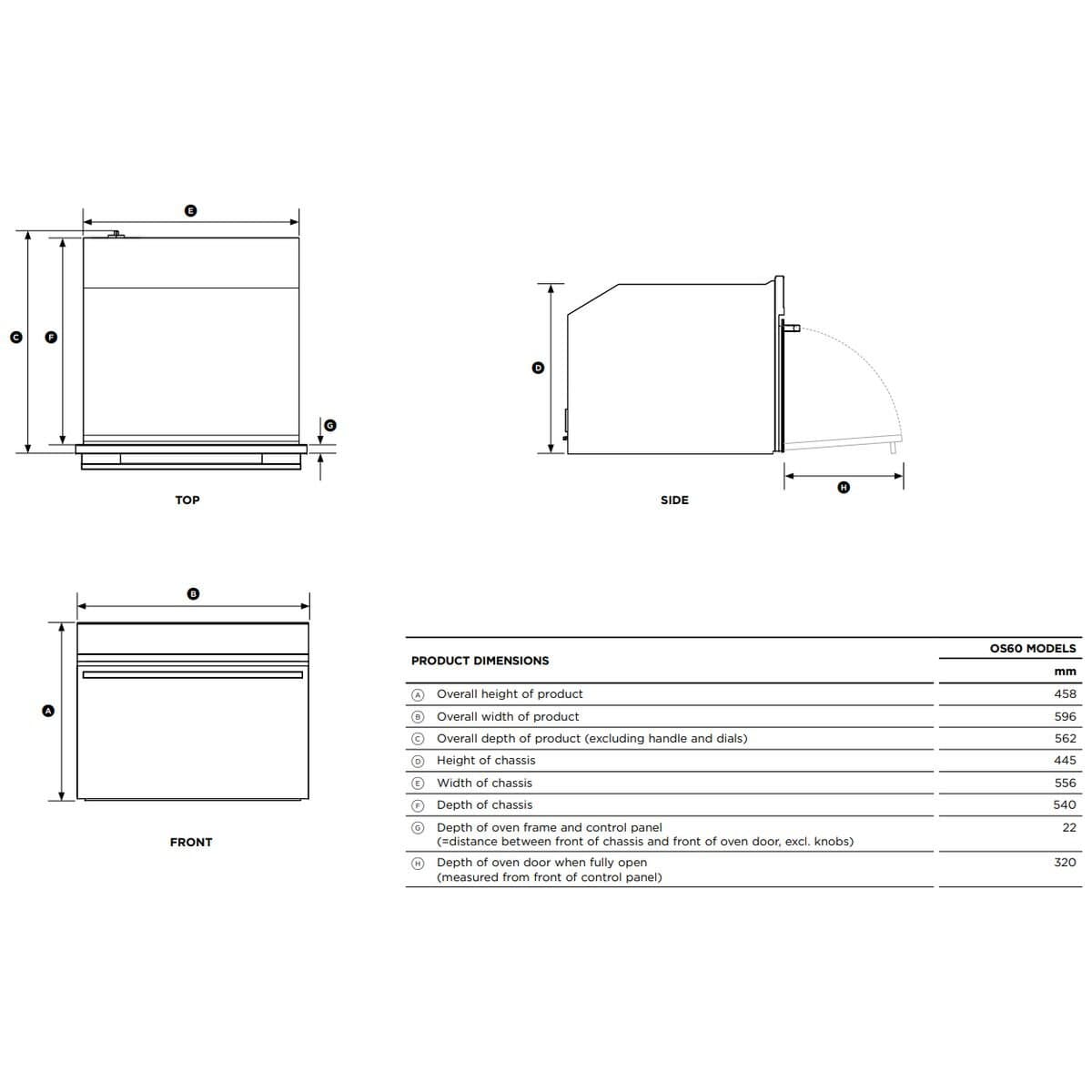

Product Dimensions
| Product Dimensions (W × H × D) | 596 × 458 × 562 mm |
Specifications
| Brand | Fisher & Paykel |
| Model Number | OS60NDB1 |
| Product Code | 82306 |
| Condition | Factory Second |
| Series | Series 9 |
| Style | Contemporary |
| Product Type | Compact Combi-Steam Oven |
| Installation | Built-In |
| Finish | Stainless Steel |
| Oven Width | 60 cm |
| Total Capacity | 36 L |
| Usable Capacity | 29 L |
| Shelf Positions | 3 |
| Number of Functions | 9 |
| Fan Forced | Yes |
| Fan Grill | Yes |
| Grill | Yes |
| Ring + Grill | Yes |
| Steam + Ring | Yes |
| Steam 100 | 100°C / 210°F |
| Steam 130 | 130°C / 265°F |
| Steam Assist | Yes |
| Steam Clean | Yes |
| Recipe Function | Yes |
| SteamTechnology | Yes |
| Grill Power | 1500 W |
| Control Type | Intuitive Touchscreen Display |
| Guided Cooking | By Food Type and Recipes |
| Automatic Pre-Set Temperatures | Yes |
| Automatic Cooking / Minute Timer | Yes |
| Delay Start | Yes |
| Electronic Clock | Yes |
| Temperature Sensor | Yes |
| Lighting | Halogen |
| Interior | Easy-Clean Stainless Steel |
| Water Tank | Removable |
| Plumbing Required | No |
| Control Panel Key Lock | Yes |
| CoolTouch Door | Yes |
| Safety Thermostat | Yes |
| Supply Voltage | 220–240 V |
| Supply Frequency | 50 Hz |
| Amperage | 15 A |
| Width | 596 mm |
| Height | 458 mm |
| Depth | 562 mm |
| Baking Pan | 1 Included |
| Perforated Large Dish | 1 Included |
| Wire Shelf | 1 Included |
| Wired Temperature Sensor | 1 Included |
Delivery Information:
- Our drivers will deliver, unpack, install, and remove your old appliance.
- Excludes cabinet, electrical, venting, plumbing, mounting, or door removals.
- Plumbed fridges will be unpacked and placed only; a plumber may be required.
- Delivery and access must be feasible and safe for a two-man crew.
- $80 fee for cancellations or returns requested on delivery day.
- Redelivery or any approved returns will incur additional charges.
- If you do not allow the delivery company to open the appliances upon delivery, responsibility for any later-discovered damage rests with the customer.
Description
Model: OS60NDB1
The Fisher & Paykel OS60NDB1 is a 60cm Series 9 Contemporary compact combi-steam oven with a 36L total capacity. It combines steam and conventional oven functions in a compact built-in format, giving you flexible options for cooking with moisture, fan-forced heat and grilling.
Nine cooking functions include dedicated steam modes as well as Fan Forced, Fan Grill, Grill, Ring + Grill and Steam + Ring. Steam cooking helps food retain moisture, flavour and nutrients, while the wired temperature sensor supports more controlled cooking results.
The intuitive touchscreen provides guided cooking by food type and recipes, automatic pre-set temperatures, timers, delay start and temperature information. A removable water tank means the oven requires no plumbing, making installation straightforward with a standard 15A electrical connection.
Cleaning is simplified by the smooth stainless steel interior and Steam Clean function. The compact oven measures 596mm wide, 458mm high and 562mm deep and includes a baking pan, perforated large dish, wire shelf and wired temperature sensor.
Features
- 36L Series 9 compact combi-steam oven
- Nine cooking functions including dedicated steam modes
- Intuitive touchscreen with guided cooking and recipes
- Removable water tank with no plumbing required
- Wired temperature sensor and Steam Clean function
Product Dimensions
| Product Dimensions (W × H × D) | 596 × 458 × 562 mm |
