Product Information
Description
Model: UM-PA9ST

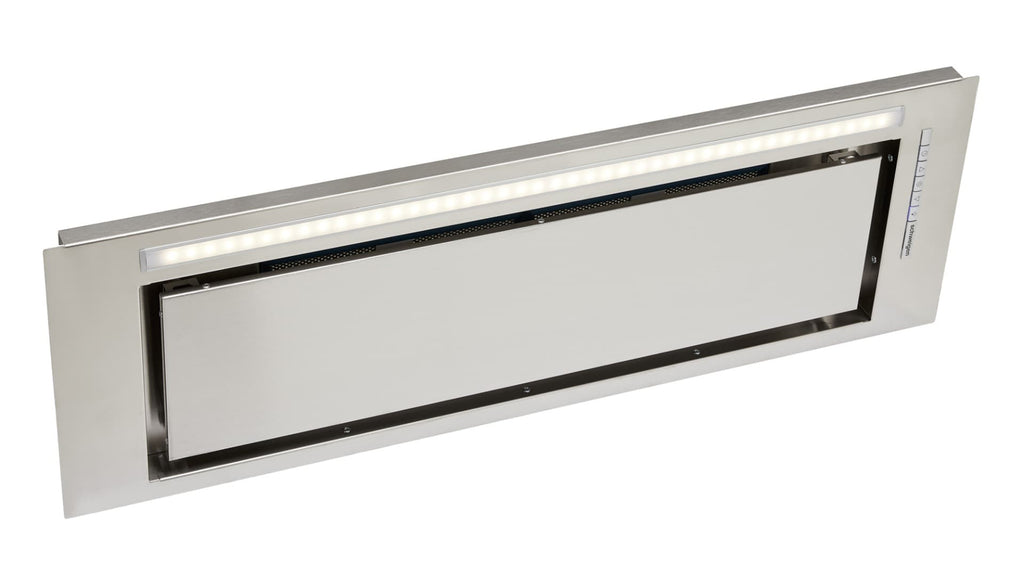

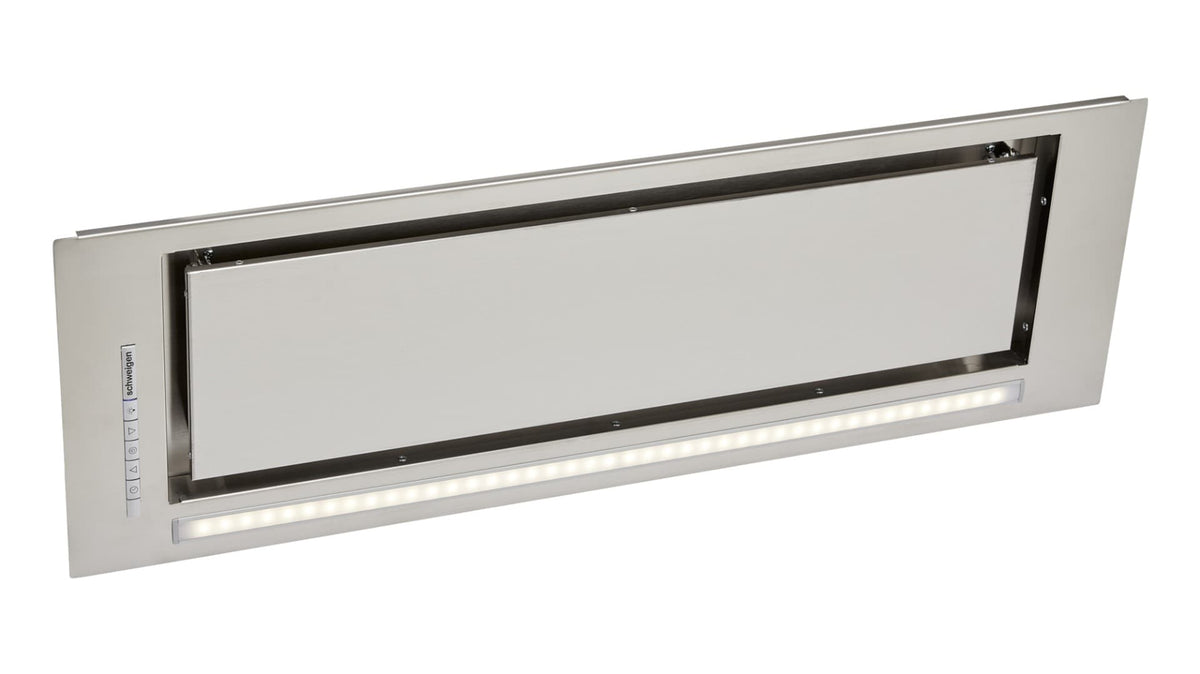

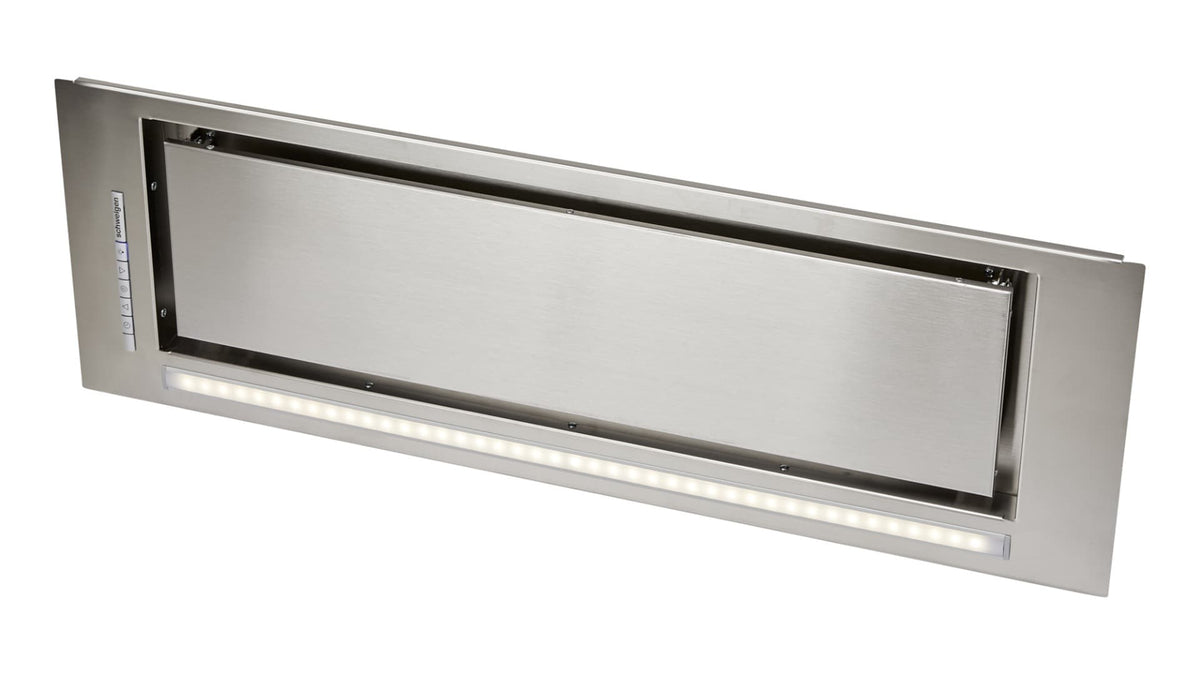

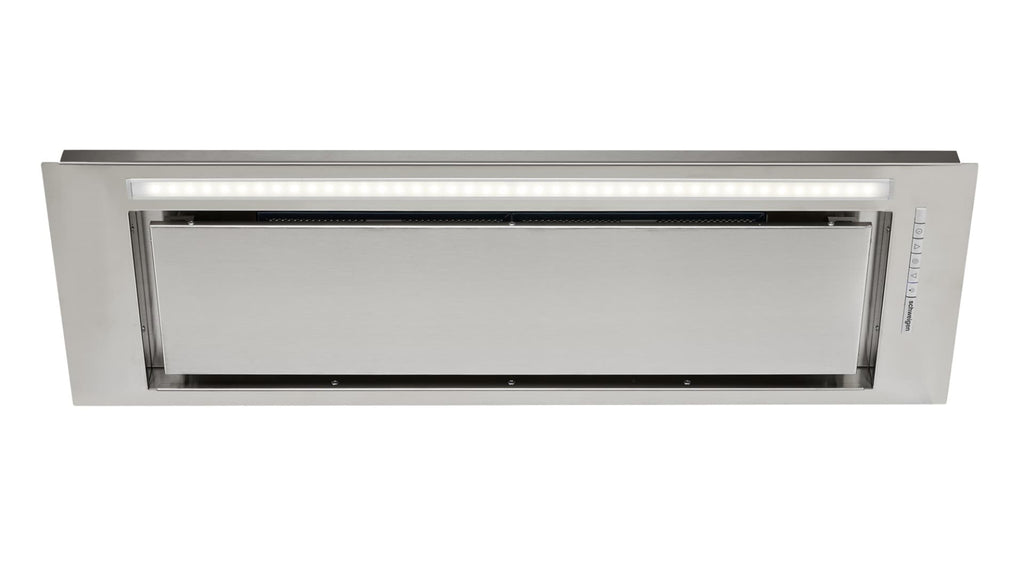

The Schweigen UM-PA9ST is a 90cm silent undermount rangehood in stainless steel, combining the UM-PA9S canopy with Schweigen's ST single external Isodrive motor. Its concealed undermount design integrates into overhead cabinetry for a clean, streamlined kitchen appearance.
The ST external motor provides up to 900m³/h airflow while moving the motor away from the cooking area to support Schweigen's silent extraction design. Perimeter Aspiration concentrates extraction around the edge of the rangehood to create a focused capture area for cooking fumes and odours.

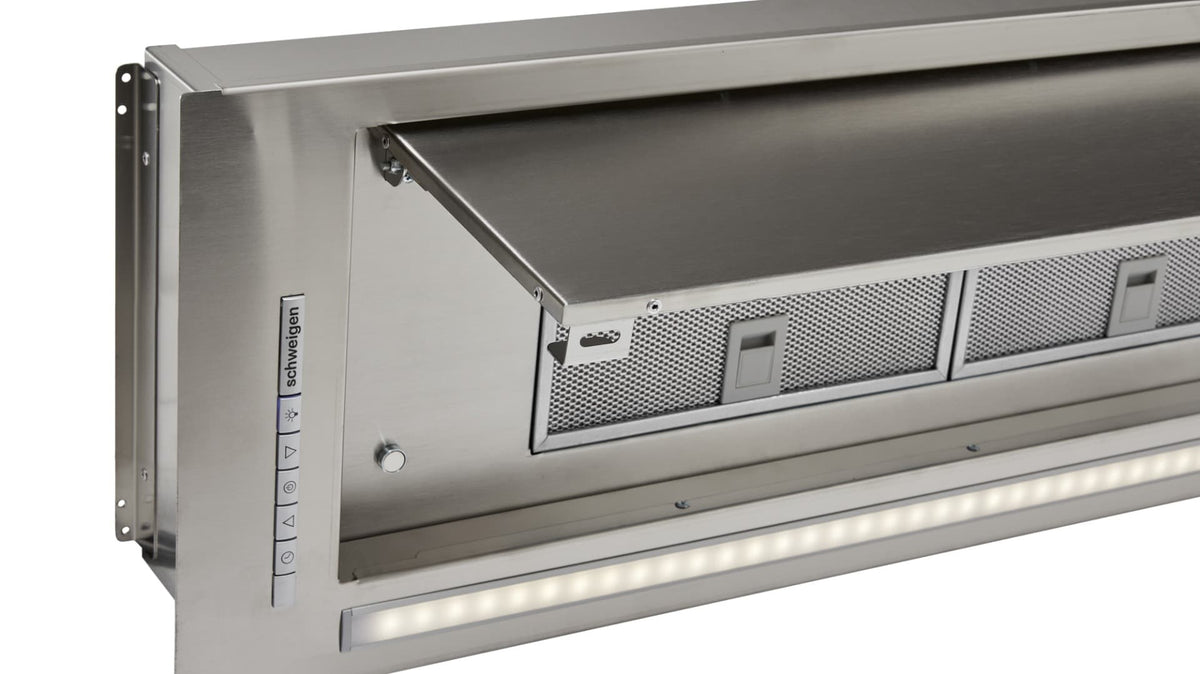

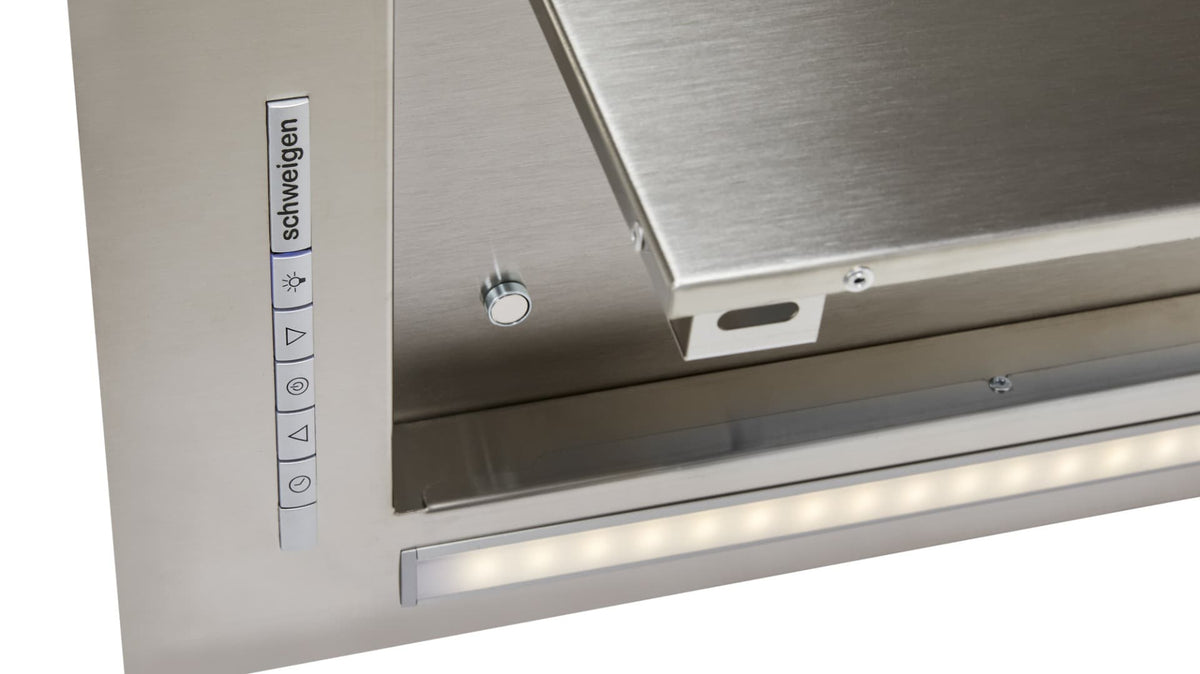

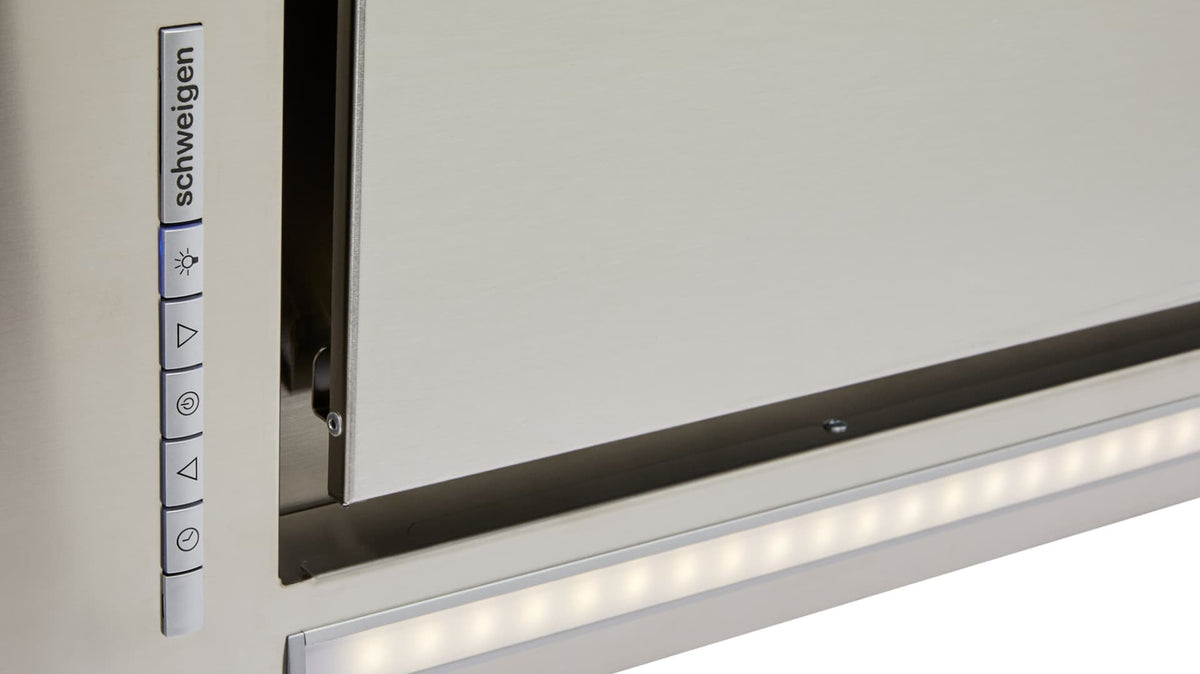

Soft-touch controls provide four fan-speed levels, together with a 15-minute delay timer and automatic shut-off. A 726mm LED strip provides cooktop illumination, while the aluminium mesh filters are designed to be removable and dishwasher safe.
The system includes 200mm Schweigen SteelFlex high-performance safety ducting for the ST motor installation. The stainless steel canopy measures 895mm wide, 348mm high and 295mm deep, making it suitable for integrated installation above a wide cooking surface.
Product Dimensions
| Product Dimensions (W × H × D) | 895 × 348 × 295 mm |
| Ducting Diameter | 200 mm |
| Included SteelFlex Ducting Length | 4 m |
Specifications
| Brand | Schweigen |
| Model Number | UM-PA9ST |
| Canopy Model | UM-PA9S |
| Condition | Brand New |
| Product Type | Silent Undermount Rangehood |
| Rangehood Width | 90 cm |
| Width | 895 mm |
| Height | 348 mm |
| Depth | 295 mm |
| Finish | Stainless Steel |
| Installation | Undermount / Integrated |
| Extraction System | Perimeter Aspiration |
| Motor System | Silent Isodrive |
| Motor Option | ST Single External Motor |
| Maximum Airflow | 900 m³/h |
| Motor Rated Power | 57 W |
| Fan Speed Levels | 4 |
| Control Type | Soft-Touch |
| Delay Timer | 15 Minutes |
| Automatic Shut-Off | Yes |
| Lighting | LED Strip |
| LED Strip Length | 726 mm |
| Light Power | 3.36 W |
| Light Voltage | 12 V |
| Light Colour Temperature | 3000 K |
| Filter Type | Aluminium Mesh |
| Filter Cleaning | Dishwasher Safe |
| Ducting | Schweigen SteelFlex |
| Ducting Diameter | 200 mm |
| Ducting Length | 4 m |
| Motor Installation | Roof or Wall |
| Supply Voltage | 220–240 V |
| Supply Frequency | 50 Hz |
| Canopy Warranty | 5 Years |
| Isodrive Motor Warranty | 10 Years |
| Filter Warranty | Lifetime |
Delivery Information:
- Our drivers will deliver, unpack, install, and remove your old appliance.
- Excludes cabinet, electrical, venting, plumbing, mounting, or door removals.
- Plumbed fridges will be unpacked and placed only; a plumber may be required.
- Delivery and access must be feasible and safe for a two-man crew.
- $80 fee for cancellations or returns requested on delivery day.
- Redelivery or any approved returns will incur additional charges.
- If you do not allow the delivery company to open the appliances upon delivery, responsibility for any later-discovered damage rests with the customer.
Description
Model: UM-PA9ST
The Schweigen UM-PA9ST is a 90cm silent undermount rangehood in stainless steel, combining the UM-PA9S canopy with Schweigen's ST single external Isodrive motor. Its concealed undermount design integrates into overhead cabinetry for a clean, streamlined kitchen appearance.
The ST external motor provides up to 900m³/h airflow while moving the motor away from the cooking area to support Schweigen's silent extraction design. Perimeter Aspiration concentrates extraction around the edge of the rangehood to create a focused capture area for cooking fumes and odours.
Soft-touch controls provide four fan-speed levels, together with a 15-minute delay timer and automatic shut-off. A 726mm LED strip provides cooktop illumination, while the aluminium mesh filters are designed to be removable and dishwasher safe.
The system includes 200mm Schweigen SteelFlex high-performance safety ducting for the ST motor installation. The stainless steel canopy measures 895mm wide, 348mm high and 295mm deep, making it suitable for integrated installation above a wide cooking surface.
Features
- 900m³/h ST external Isodrive motor system
- Perimeter Aspiration for focused extraction
- Four fan speeds with soft-touch controls
- 15-minute delay timer with automatic shut-off
- LED strip lighting and dishwasher-safe filters
Product Dimensions
| Product Dimensions (W × H × D) | 895 × 348 × 295 mm |
| Ducting Diameter | 200 mm |
| Included SteelFlex Ducting Length | 4 m |
